Sale!

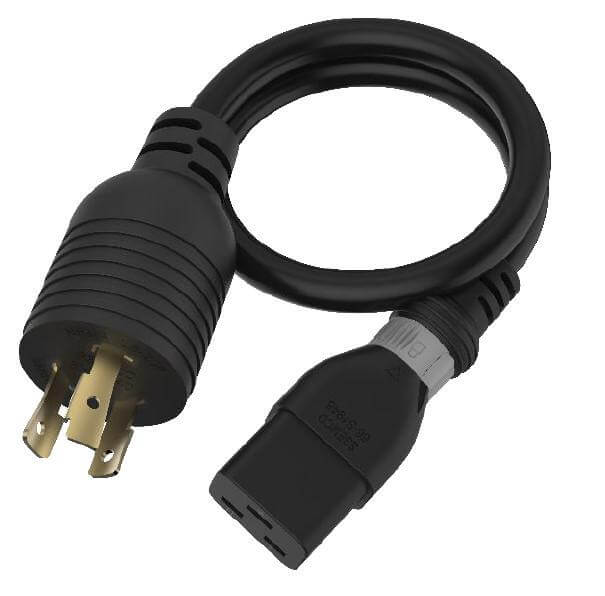

S-Lock NEMA L6-20P Power Cord
Original price was: $60.00.$45.00Current price is: $45.00.
- 2nd Generation S-LOCK Securing System
- Unique rotary switch and low profile C13/C15/C19 locking mechanism fits any standard C14/C16/C20 inlet
- Fully compliance with UL60320
- NEMA L6-20P is commonly used in data centers and different industries for 250V supply
- Rated up to 20 Amps
- Various colors/lengths are available
- More detail: 7628X0 Series_A
Description
- 7628X0-XXXXXX
- Description: S-Lock 7628X0 Series NEMA L6-20P/IEC Power Cord
- Standard: UL817 / UL60320
- High potential test voltage: 1250VAC (1min 50Hz)
- Rating: UL/cUL: 15A/20A 250VAC
- Operation temperature: -20°C ~ +70°C
- Flammability corresponding to: Plug/Connector: UL 94V-2 or better ；Cable: UL VW-1
- Conductor Size Option: For North America: 14AWG/12AWG
- Plug Orientation: Straight
- CERT： UL
Additional information
| Weight | 16.5 kg |
|---|---|
| Dimensions | 52.5 × 25.0 × 26.0 cm |
| Color | Black, Blue, Brown, Gray, Green, Orange, Purple, Red, White, Yellow |
| Technical reference | https://info.ssemco.com/wp-content/uploads/2021/10/7628X0-Series_A.pdf |
