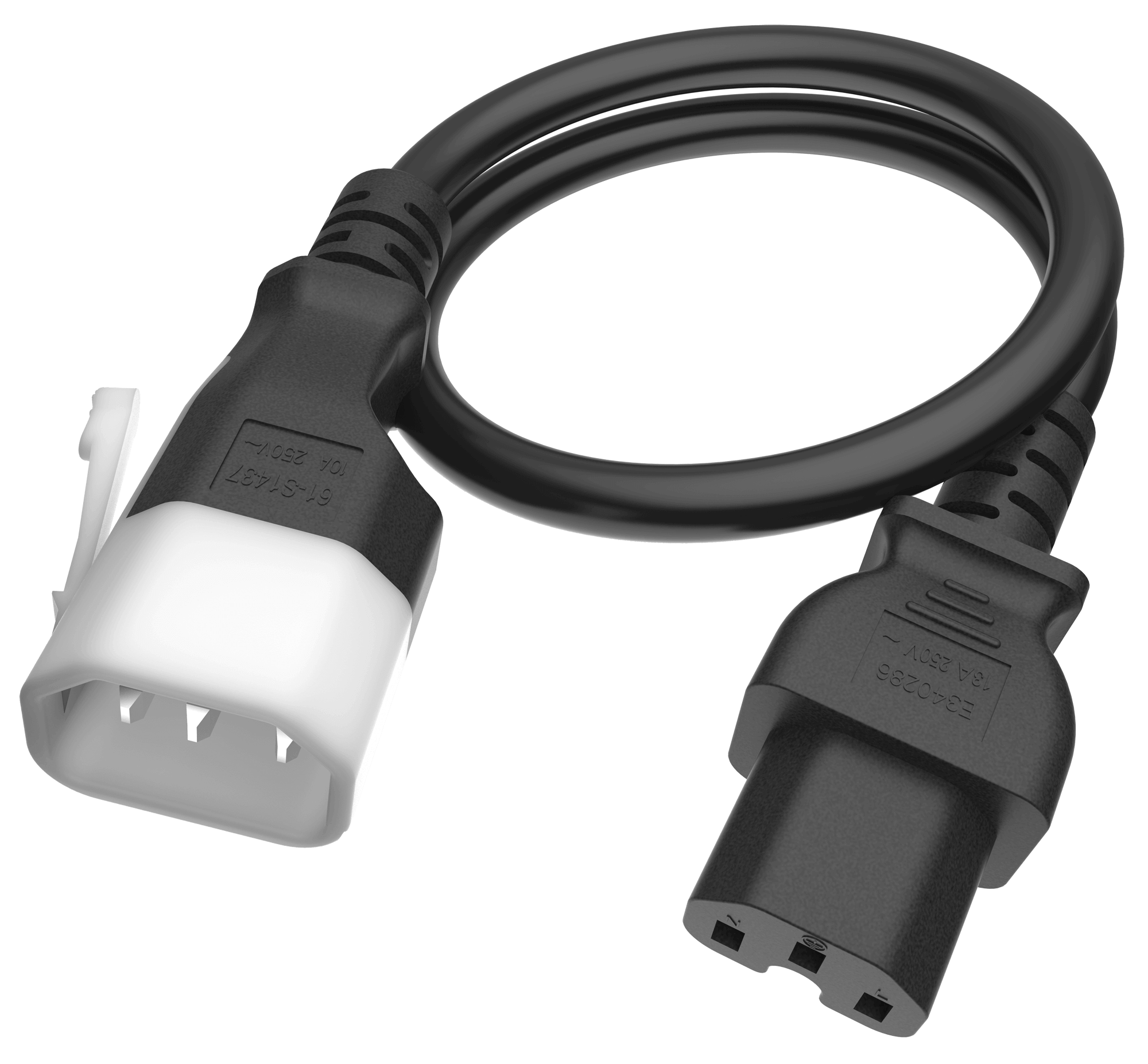

P-Lock LITE C14 C15 Power Cord
- Patented C14 positive mechanism locks with SSEMCO P-Lock outlets and is backward compatible with any standards C13 outlet
- Special single locking clip design for SSEMCO glow and high compact outlet
- Rated up to 15 Amps
- Various colors/lengths are available
- More detail: 674150 Series
Description
- 674150-XXXXXX
- Description: P-Lock LITE C14 to C15 Power Cord
- Standard: UL 60320
- High potential test voltage: 2000VAC (1min 50Hz)
- Rating: UL/cUL: 10A/13A/15A 250VAC
- Operation temperature: -20°C ~ +70°C
- Flammability corresponding to Plug/Connector: UL 94V-2 or better； Cable: UL VW-1
- Conductor Size Option: For North America: 18AWG / 16AWG/ 14AWG
- Plug Orientation: Straight
- CERT： UL
Additional information
| Color | Black, Blue, Brown, Gray, Green, Orange, Purple, Red, White, Yellow |
|---|---|
| Technical reference | https://info.ssemco.com/wp-content/uploads/2021/10/674150-Series_B-20210831.pdf |
