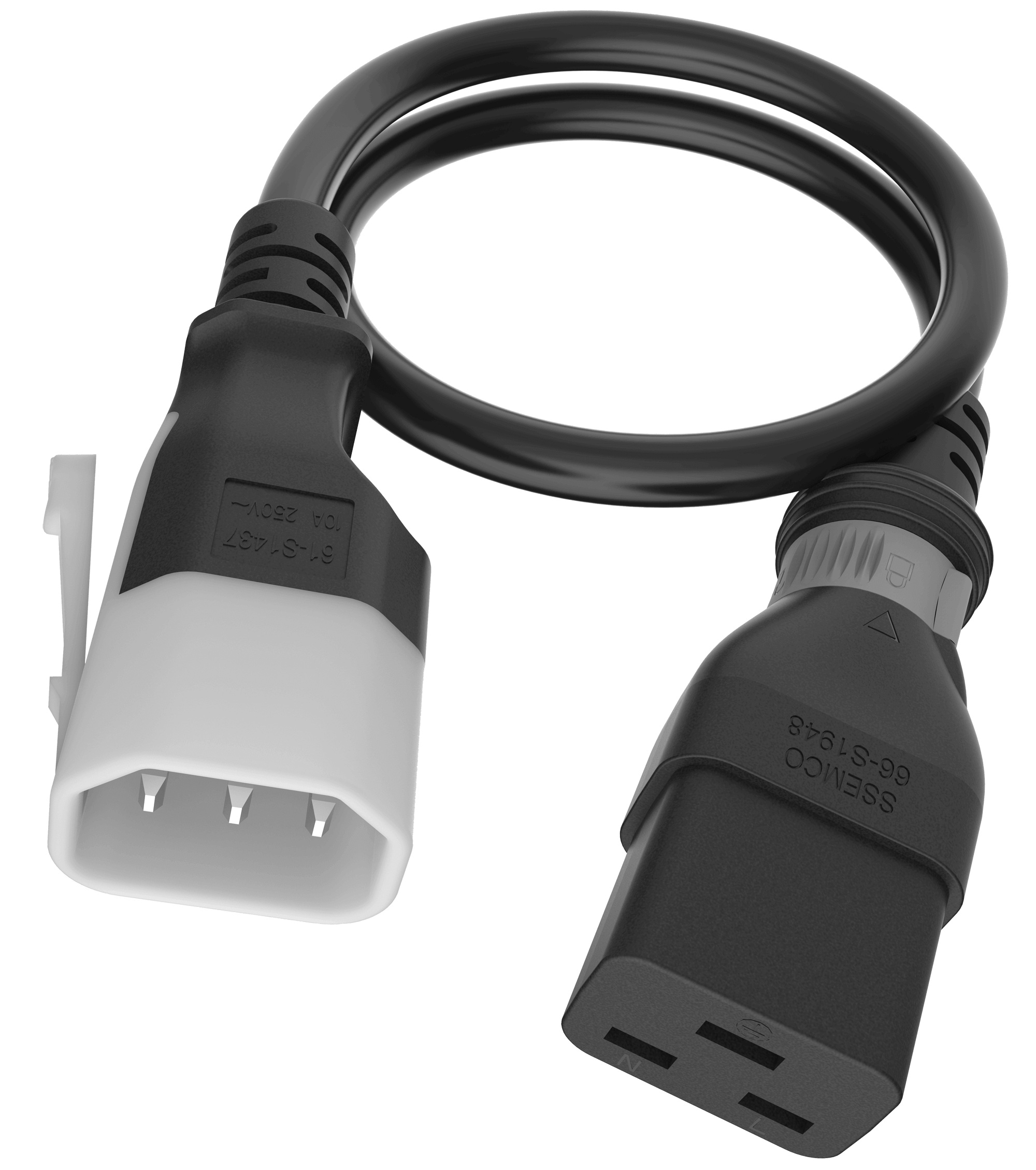

D-Lock LITE C14 C19 Power Cord
- 2nd Generation D-LOCK Securing System
- Unique rotary switch and low profile C19 locking mechanism fits any standard C20 inlet
- Special single locking clip design for SSEMCO glow and high compact outlet
- Rated up to 15 Amps
- Various colors/lengths are available
- More detail: 674890 Series
Description
- 674890-XXXXXX
- Description: D-Lock LITE C14 to C19 Power Cord
- Standard: UL 60320
- High potential test voltage: 2000VAC (1min 50Hz)
- Rating: UL/cUL: 15A 250VAC
- Operation temperature: -20°C ~ +70°C
- Flammability corresponding to: Plug/Connector: UL 94V-2 or better ；Cable: UL VW-1
- Conductor Size Option: For North America: 14AWG
- Plug Orientation: Straight
- CERT： UL
Additional information
| Color | Black, Blue, Brown, Gray, Green, Orange, Purple, Red, White, Yellow |
|---|---|
| Technical reference | https://info.ssemco.com/wp-content/uploads/2021/10/674890-Series_B-20210831.pdf |
